Celebrating Ethel Mairet



submisson

Silk yarn skeins showing the results using two Mairet recipes. The lower skein was divided into three to demonstrate increments of iron added to the vat. Dried cochineal is shown at the lower left

A book of dye recipes by weaver Ethel Mairet was first published in Ditchling, Sussex, in 1916. Its title is Vegetable Dyes. Ditchling Museum of Art and Craft is undertaking a collaborative project to re-interpret and recreate Mairet’s recipes, with the help of  contemporary dyers. There is a considerably large number to complete.

However, not all Mairet’s recipes are safe by today’s standards. Some use toxic chemicals once common in historic use, such as chrome, tin, sulphuric acid, quicklime, lead and zinc and these recipes are excluded from the project, or some individual ingredients amended. Environmental considerations have changed over the years and it is no longer recommended (or permitted) to dye with certain plant material. Lichen dyes, for instance, appear in the book but are omitted from the project because they are rare in many areas and some species are protected. Lichen recipes will be dyed, but by one specialist in Scotland. I am happy with this decision: those who have read my blog for a while know my feelings about dyeing with lichens.

The project is open to natural dyers who are confident handling their materials and they can ‘apply’ for recipes as I did, through the Museum website. The Museum sends material to be dyed; the dyer supplies dyestuff.

The Book

In Douglas Pepler’s Introduction he quotes the opening lines of the Gospel of St John (In the Beginning..) to illustrate his belief in the ‘goodness’ inherent in discoveries which mankind achieves for the first time. In tracing the subsequent destruction of quality through an urge for quantity (and one assumes, profit), he remarks that this inherent ‘goodness’ is lost. This was true, he suggests, when natural dyes were supplanted by those synthesised by chemists.

In a similar vein Ethel Mairet writes:

‘Dyeing is an art; the moment science dominates it is is an art no longer, and the craftsmen must go back to the time before science touched it, and begin all over again.’

The book is available online.

recipes

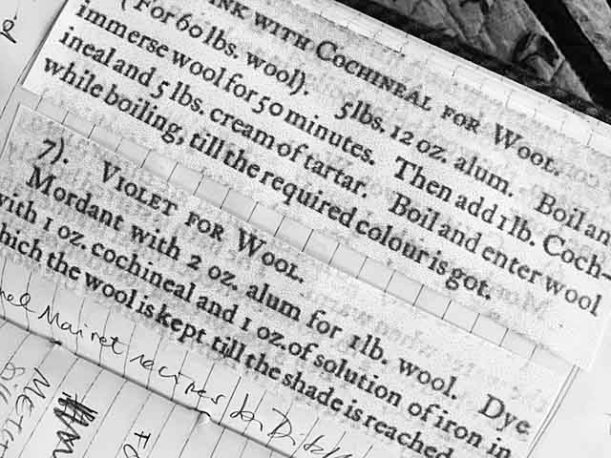

The two recipes I selected from Mairet’s book. They are for wool, but I chose the silk option offered by the project

Decisions

 I selected two cochineal recipes to dye onto silk yarn and ‘ordered’ them online from Ditchling Museum. The original recipes were for wool, but the project organisers offered the silk option and I chose it in preference to wool.  One recipe (7, above) uses iron to give a purple shade. (Note that cochineal is an insect, not a vegetable dye, but is included in Mairet’s book).

Many recipes which Mairet collected from the 17th C onwards, before science touched them, are scant on explanation and assume prior knowledge. Compare them, for example, to a contemporary book where a recipe can occupy a page of explanations and options.

So, following the two recipes wasn’t straightforward and often puzzling. I would never in normal practice add wool or silk to a boiling vat. So how should I interpret ‘Boil and enter wool while boiling, till the required colour is got.’?  And should I rinse after mordanting in recipe 4, or sling the cochineal and cream of tartar straight into the mordant as is suggested by the word ‘add? In recipe 7, what colour is considered violet? What does a 1 oz solution of iron mean? And so on. I had to make some of it up as I went along.

Happily, I had no spectators when calculating the Mairet quantities to simple percentages.

I’m including my recipe reports under the links, below. They are not of interest to everyone but indicate some quandaries faced when using historic recipes.


Links

Get involved in the dye project here

Download Ethel Mairet’s book here

Here My earlier blog about Mairet’s madder recipes

Here My blog on dyeing with lichens

Hilary Douglas Clark Pepler

Ditchling Museum of Art and Craft




Recipe report page 93, recipe 4: silk

PINK WITH COCHINEAL FOR WOOL

 12 gram silk skein supplied

Calculations were made at

10.4% alum

6% cochineal

12% cream of tartar

Method:

Cochineal ground finely in pestle and mortar.

Silk was washed, rinsed, and remained wetted out.

Mordanting was started cold so that the silk would not be entered at boiling point as the recipe requested (unwise for silk) but was raised to boiling over the period of an hour. It was held at boiling point for 50 minutes.

It would normally be my practice to allow the silk to cool in the mordant and rinse, but the recipe seemed specific about procedure as follows:

Then add 1lb. Cochineal and 5lbs cream of tartar

So I kept the silk in the very hot mordant liquid and added the cochineal and cream of tartar. The colour seemed to ‘take’ immediately and after half an hour the vat looked to be exhausted. The recipe suggests that items be left in the vat till the required colour is got . To obtain a lighter pink, this would have meant removing the yarn after a very short time in the vat which as far as I’m concerned isn’t very good practice. So, using this recipe, a lighter pink would be best obtained by reducing the percentage of dyestuff.

The colour in the sample therefore reflects the 6% of cochineal used.




Recipe report page 94, recipe 7: silk

VIOLET FOR WOOL

12 gram silk skein supplied

The following quantities used:

1.5 gr alum

.75 gr cochineal

Iron water as described below

Method:

Cochineal was ground finely in pestle and mortar. Silk was washed, rinsed, and remained wetted out.

No method was given for mordanting in the recipe. Mordanting was started cold and the vat raised to boiling over the period of an hour. It was held at boiling point for 50 minutes, as in my sample for the p. 93 recipe 4 sample. However, for this recipe I allowed the silk to cool in the mordant for several hours and then rinsed it. This is because the recipe seemed to separate the mordant and dye processes, unlike the p. 93 recipe.

Because there was no specific mention of cream of tartar in this recipe (and there was on p. 93), I did not use it in the mordant.

A clean vat was made with cold water and the cochineal added. The silk was entered into the vat and stirred: the colour ‘took’ quickly. The recipe states that the cochineal and iron should be added at the same time but I was reluctant to do this because I do not use ferrous sulphate. Instead I keep a jar of iron water, made with rusty nails, water and vinegar. This serves my dyeing purposes well but means that for this project I could not calculate what the recipe’s 1 oz solution of iron would represent in terms of iron water. I was therefore wary of adding too much too soon.

I therefore dyed the silk yarn for a full half hour, and the vat was exhausted. I added 1 ml iron water to the vat and after ten minutes there was an appreciable change in colour so I removed the yarn.

When the yarn had dried I decided it wasn’t ‘violet’ – or at least not violet enough. So I divided the skein into three equal parts, keeping the original colour as Skein 1. Skein 2 was wetted out, reintroduced into the vat with a further 1 ml iron water, and removed after ten minutes. Skein 3 was wetted out, and reintroduced into the vat with a further 2 mls iron water.

All skeins washed and rinsed to remove iron.

NOTE: The colour of the dyed silk prior to the addition of the iron was almost identical to the sample obtained for p. 93. The two sets of samples thus offer a good progression from pink through to violet and purple.

 Cochineal source The cochineal was sourced from Lanzarote.

Advertisements


4 Comments

Teaching News

raindrops

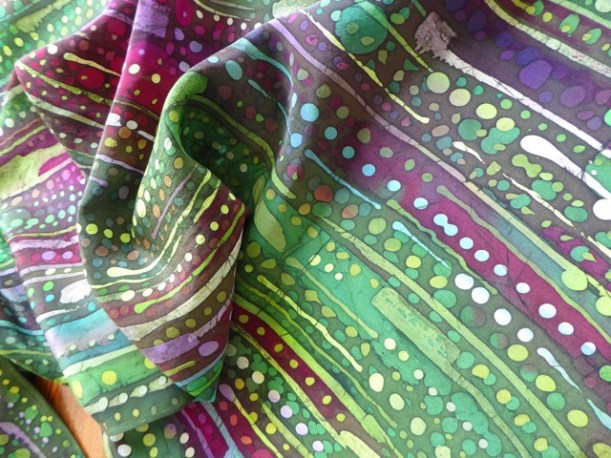

Wax resist and steam-fixed dyed scarf. Silk crêpe de Chine. Isabella Whitworth, 2016

I’ve just unpacked after teaching three one-day courses in Oxfordshire. This completes my teaching programme for the year. I teach regularly at only two venues: Ardington, south of Oxford, and West Dean, just north of Chichester.

Ardington School of Crafts is non-residential. My courses there are always one-day, although sometimes linked so that students studying, say, natural dyes can take a further course focusing on indigo. They are suitable for complete beginners. Ardington’s 2017 programme will shortly go ‘live’, and the six dates are on my teaching page here. There will be a variety of courses, all of them repeating popular subjects.

West Dean College is residential, although some students make their own accommodation arrangements. Courses stretch across a few days, have up to now taught resist techniques using synthetic dyes on silk, and have been for beginners and intermediate students.

Many students have attended several of my courses and have progressed very well. After discussions with the Short Course Organiser at West Dean, we have added a new course which will take place from July 20th – 23rd 2017*. Its title will be Handpainted Silk Scarves: Developing Design, Building Technique. This course is designed for those who have relevant experience gained with me or other tutors, but would like to study or practise techniques and ideas not viable on beginner / intermediate courses. Some of the focus will be on design and planning. The idea is to offer more experienced students a course of their own.

However, all students, of whatever experience or ability, continue to be welcome on my beginner / intermediate courses. Although I may be instructing beginners too, more experienced students know they can progress at their own pace within the structure of the course and I can assist them in new directions.

  • My apologies if you read this some weeks ago because I had entered the Advanced Course date in error. The April dates 24th – 27th  are for the Beginners’ Course. The more Advanced / experienced course will be in July, as above.

vat

Inside a vat made from Japanese indigo (Persicaria tinctoria)

West Dean Summer School takes place over three weeks with a separate set of courses each week. I will be teaching a six-day Summer School course from August 5th – 12th 2017 titled Creative Dyeing for Scarves and Fabric. This course will be suitable for beginners, intermediate students and anyone who has studied with me before. My idea for Summer School is to broaden understanding of resist techniques, such as shibori and wax resist, by exploring some relationships between traditional and contemporary dyeing. The course will feature a natural indigo vat which can be used as well as (but not together with!) synthetic dyes. Indigo has a unique and beautiful affinity with resist techniques, and many contemporary resist processes are based on its traditional use. There will also be opportunities to discuss and develop designs for wax resist work. More details will appear on the West Dean website.

Teachers and technicians can apply for a 50% discount on a Summer School. Contact West Dean on 01243 818300 to register your interest, with the name of your school, college or university, and a 1st, 2nd and 3rd choice of Summer School course.

Booking for 2017 is now open via West Dean (link below).

My February 2017 course is full.
